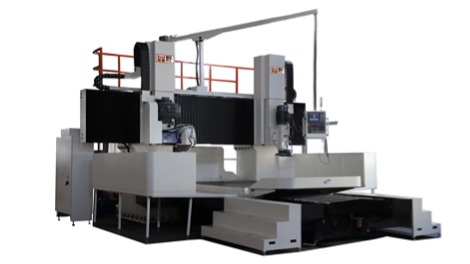

| 雙頭龍門磨 | |||
| 模型/內容 Model / Content | PSG-2130GM | PSG-2140GM | PSG-2160GM |
| X軸最大研磨長度 Max. grinding length of axis X | 3100mm | 4100mm | 6100mm |
| 工作臺尺寸（長x寬） Worktable size (L*W) | 3100x1600mm | 4100x1600mm | 6100x1600mm |
| Y軸最大移動行程 Max. movement stroke of axis Y | 21 50mm | ||
| Z軸最大移動行程 Max. movement stroke of axis Z | 1000mm | ||
| 磨削高度（臥頭為準） Grinding height (subject to horizontal head) | 1000mm（加高1300mm） | ||
| 兩立柱間距（寬x高） Distance between two columns (W*H) | 2150x1300mm（加高1600mm） | ||
| X軸移動速度 Moving speed of axis X | 5-25 (m/min) | ||
| Y軸移動速度 Movement speed of axis Y | 0-5 (m/min) | ||
| Z軸移動速度 Movement speed of axis Z | 0-2 (m/min) | ||
| 臥頭主軸轉速 Spindle speed of horizontal head | 0-1000rpm | ||
| 立頭主軸轉速 Spindle speed of vertical head | 0-1650rpm | ||
| 立頭旋轉角度 Rotating angle of vertical head |  ±60° | ||
| 推真臥頭砂轉尺寸（外徑x寬度x孔徑） Max. horizontal head grinding wheel size (OD * Width * Hole Diameter) | 600x100x203 | ||
| 推真立頭砂轉尺寸（外徑x寬度x孔徑） Max. vertical head grinding wheel size (OD * Width * Hole Diameter) | 400x60x127 | ||
| 工作臺導軌形式 Worktable rail form | 雙V型導軌 | ||
| 工作臺T型槽（尺寸x距離x數(shù)量） Worktable T-slot (Size * Distance * Qty.) | 24mmx200mmx8 | ||
| 工作臺最大承重 Max. bearing capacity of worktable | 6500kg | 8000kg | 12000kg |
| 機械重量 Mechanical weight | 28000kg | 31000kg | 41000kg |
